Handling Equipment

Oval Coiling Arm

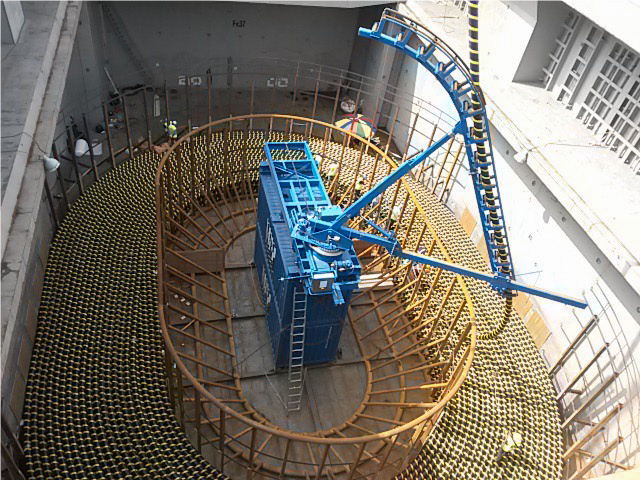

The Oval Coiling Arm is designed to guide cable smoothly and efficiently into an oval basket during coiling operations.

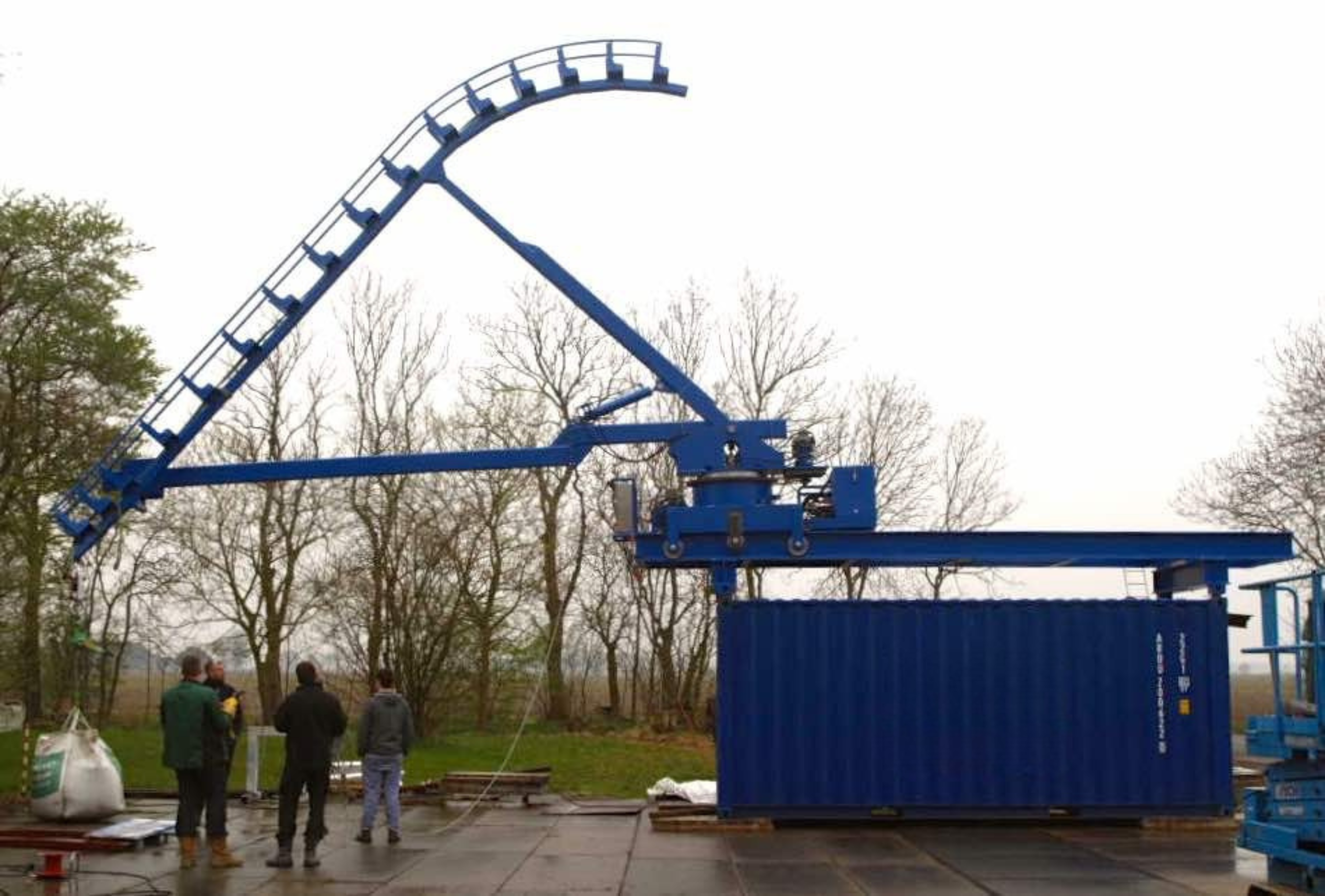

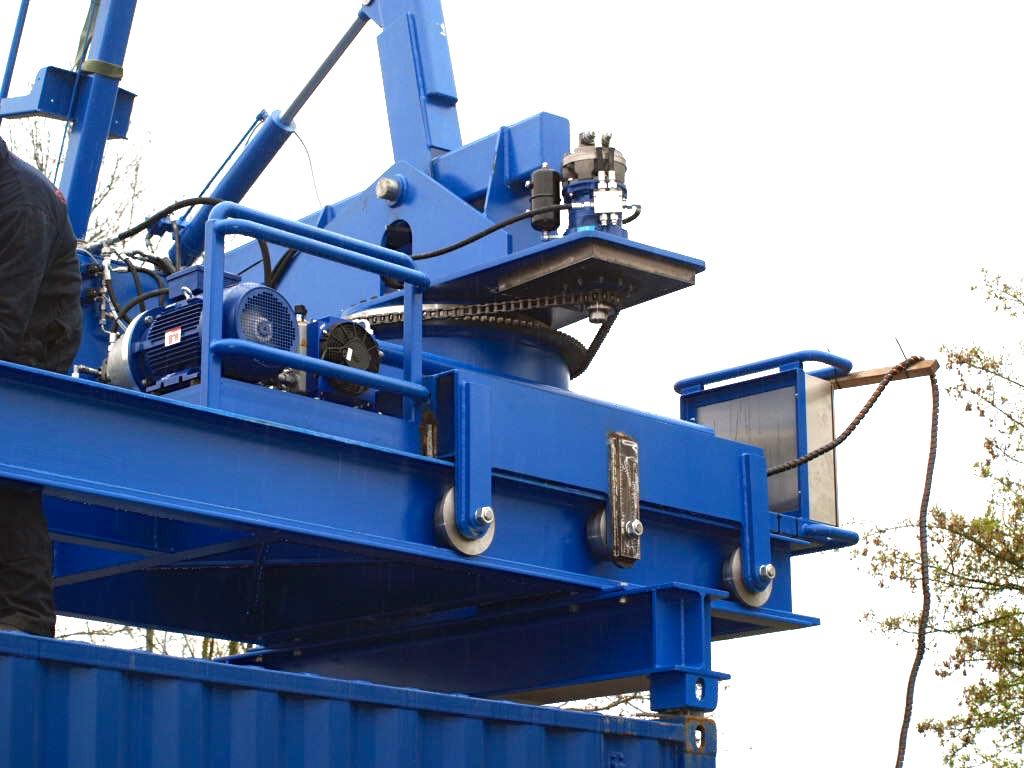

The flexible arm is mounted on a specially designed rail system, securely installed onto a container to provide stable and controlled cable handling. This makes the system a practical solution for projects requiring accurate cable positioning and efficient basket loading.

Specs

Technical details

Footprint

20ft. ISO container. Height 7.1m

Weight on deck

6.5t (approx. value) excl. containers

Working Load Limit

500kg cable weight

Power supply

380V, 50Hz, 11kW

Max. pulling force

20kN

Cable opening

Min. 30mm / max. 300mm
