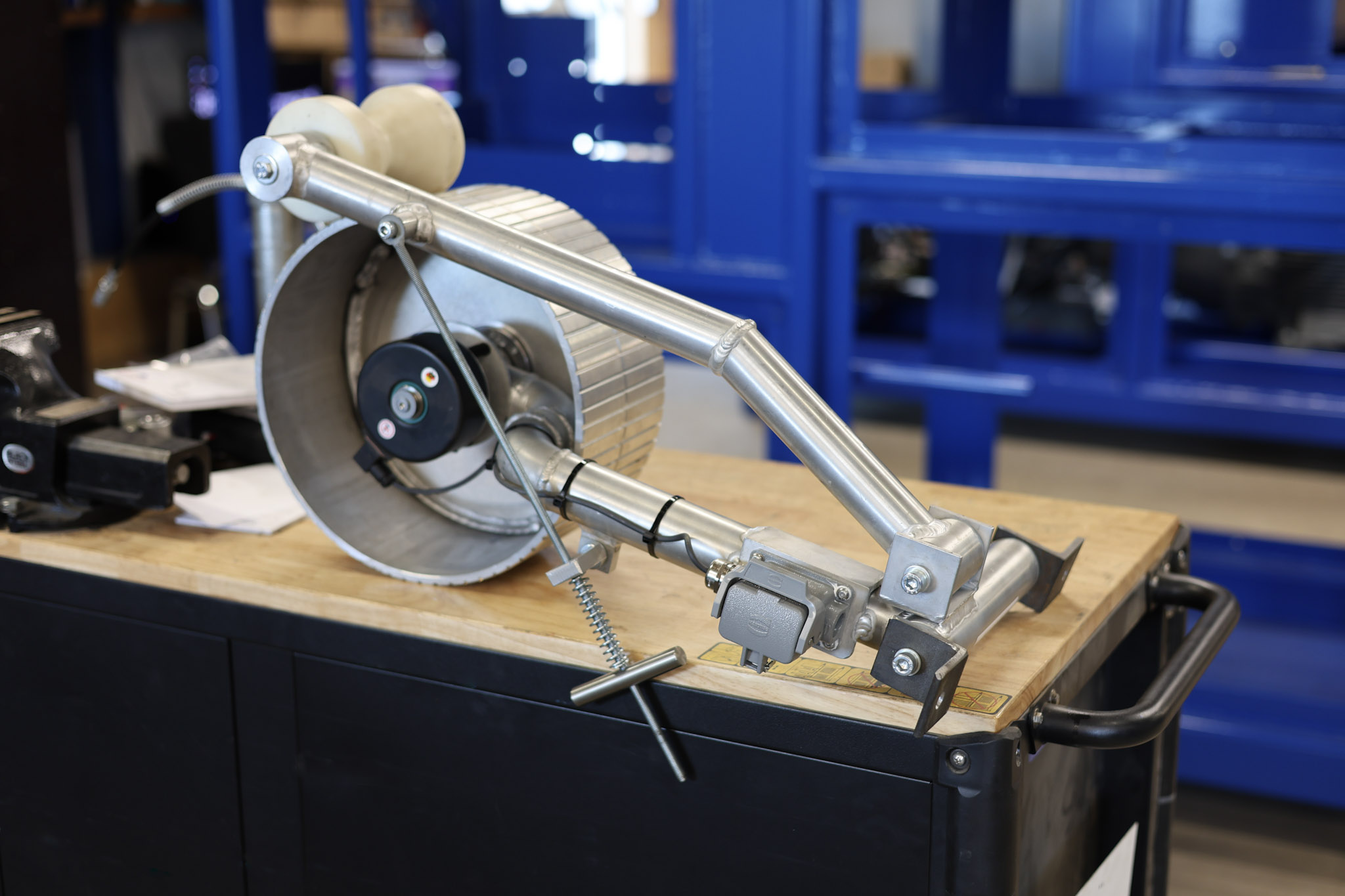

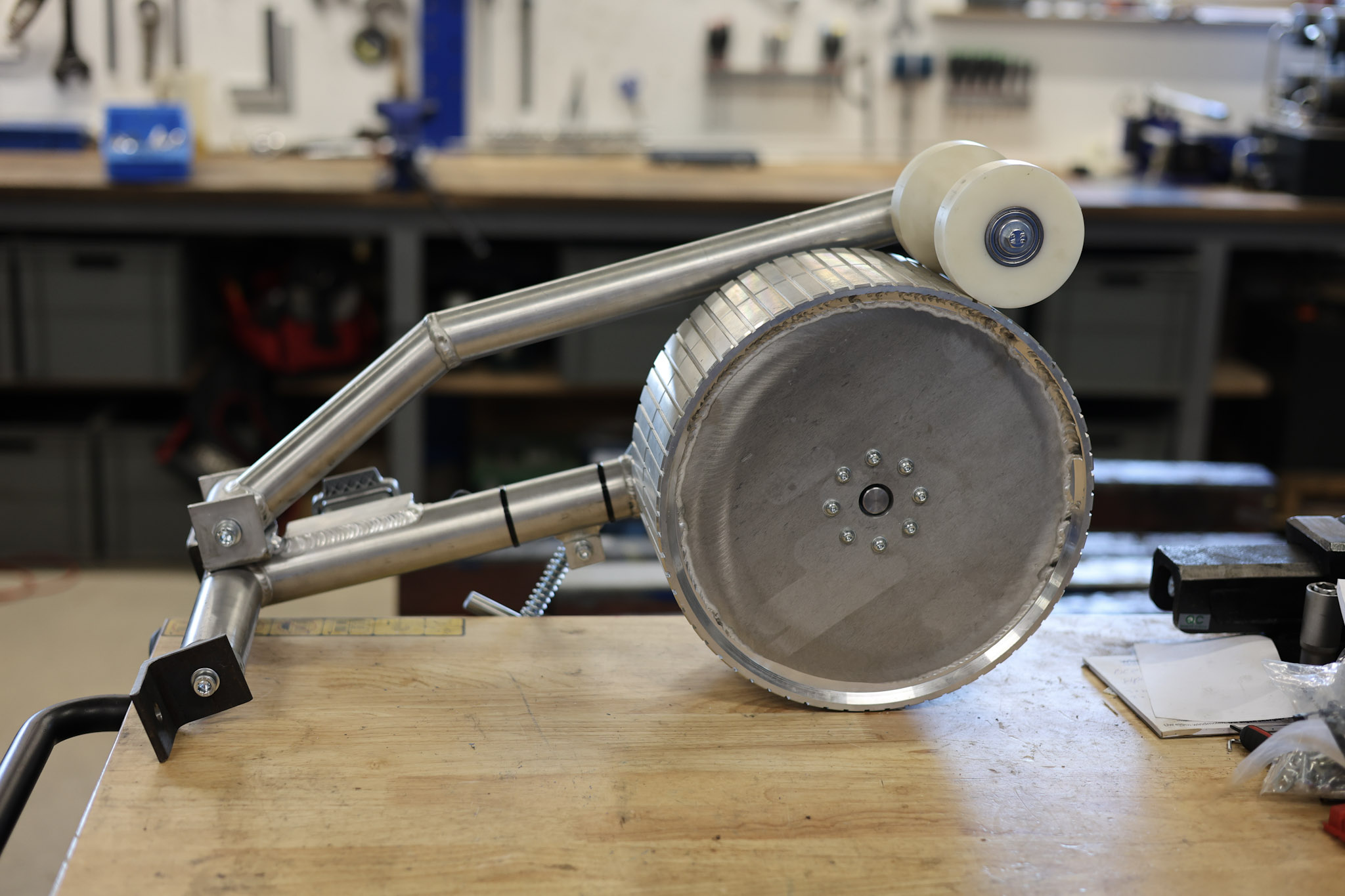

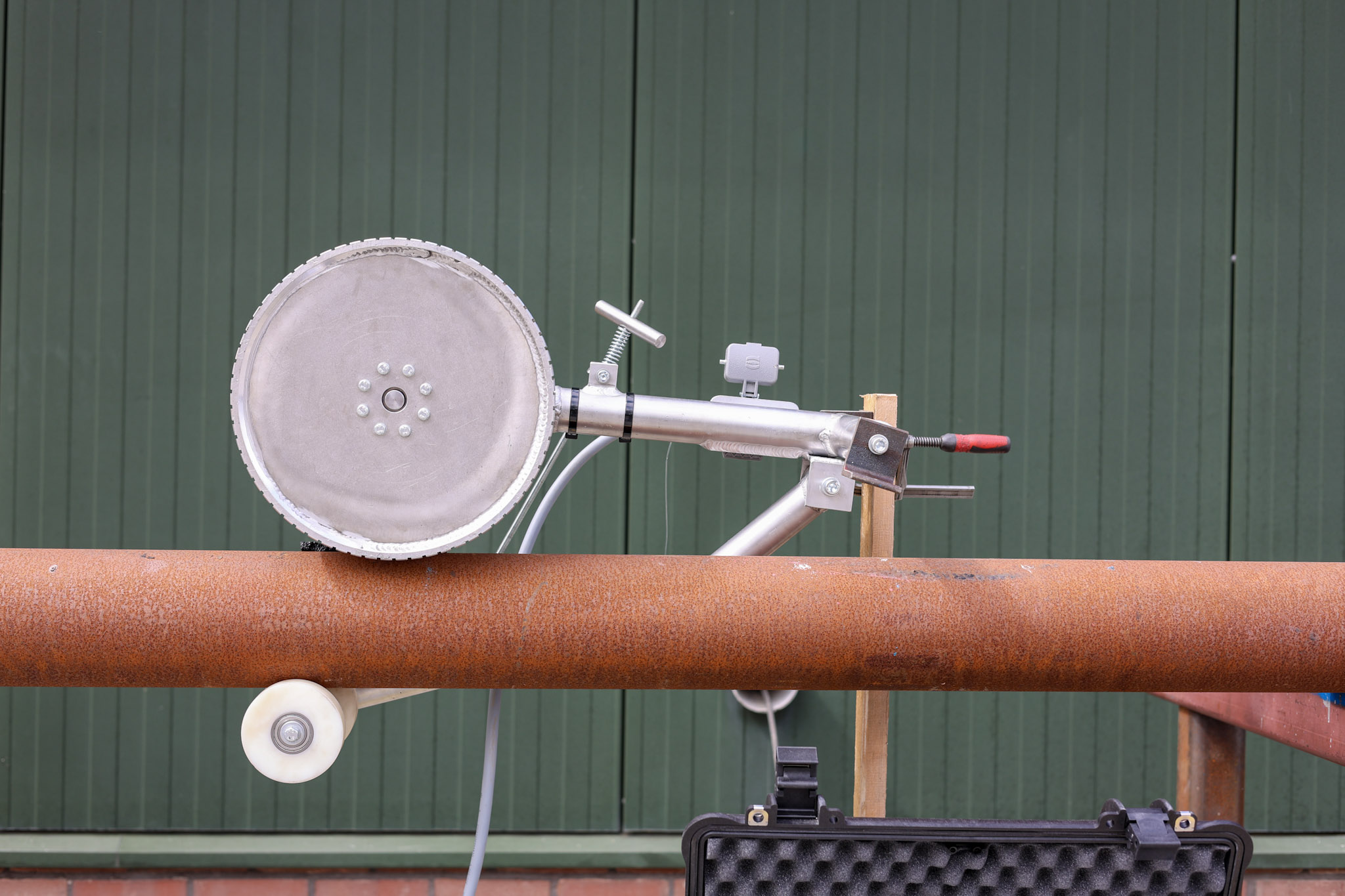

Digital Cable Counter

The Digital Cable Counter is designed for accurate measurement of cable length and speed during cable handling operations.

Equipped with a PLC, digital encoder and touch display, the system allows measured data to be collected, monitored and integrated into project operations. With multiple communication options available, the Digital Cable Counter can be tailored to specific client requirements and supports safe, controlled and efficient cable project execution.

Specs

Technical details

Overall dimensions

Length 0.68m / Width 0.25m / Height 0.35m

Weight

Appr. 10kg

Cable opening

Min. 25mm

Power Supply

100V AC … 240V AC 50-60Hz

Encoder

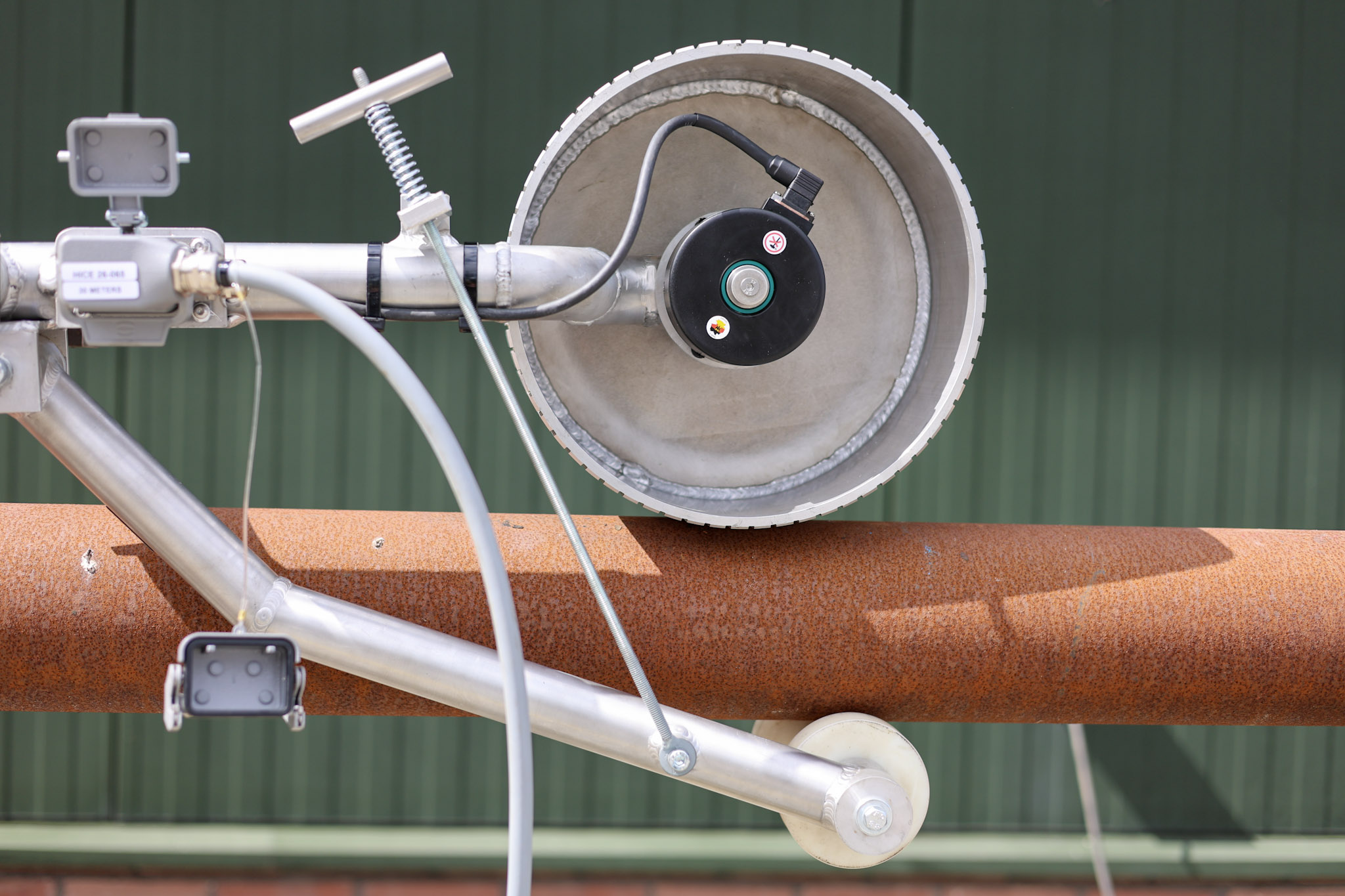

1x digital encoder HWI104S- 2021R073-2000pulses/rev (2000pulses/rev)

Display

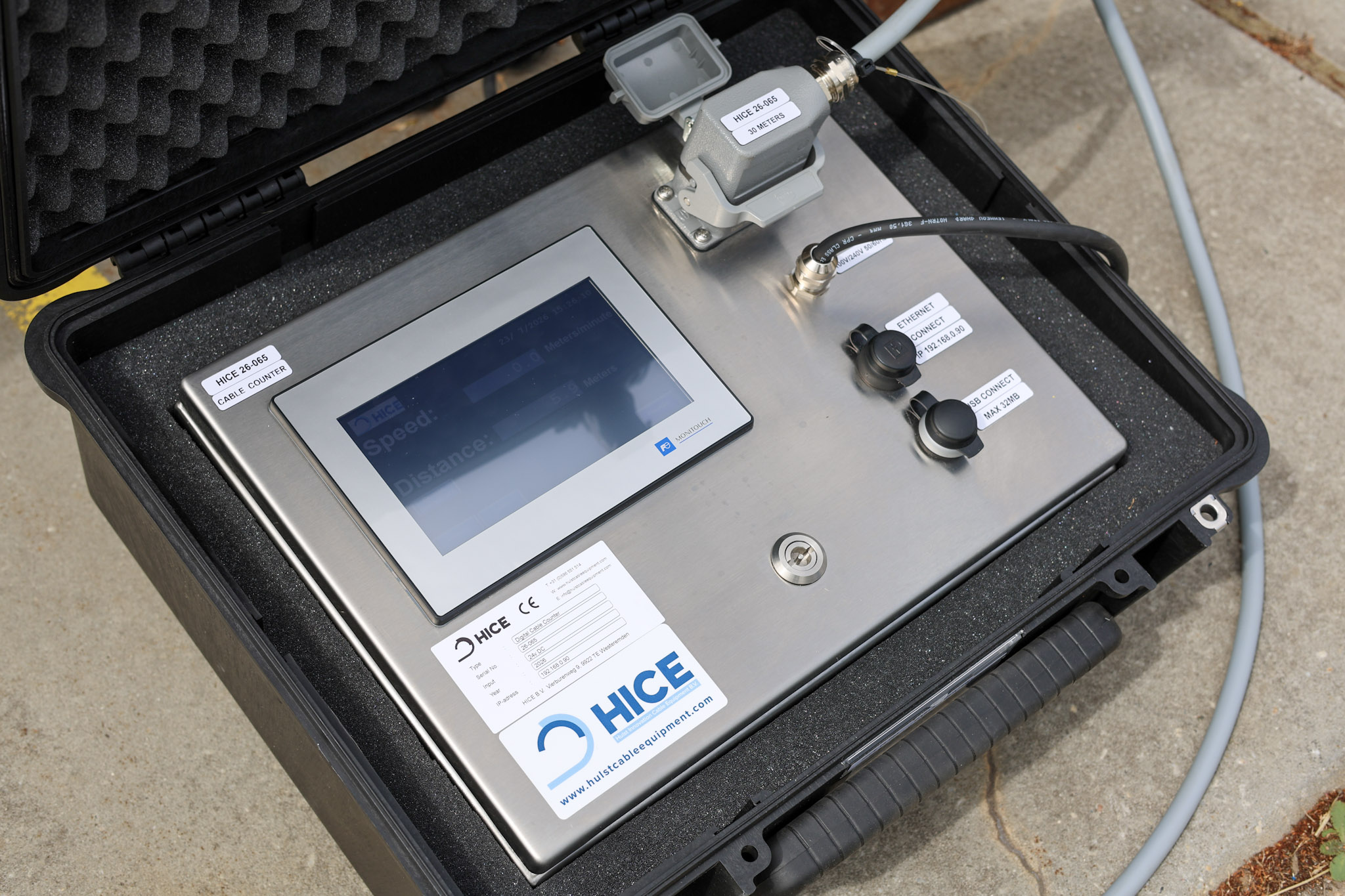

7.0 inch widescreen Touch display

Communications

RJ45 CONNECTOR/ USB connector for USB Flash drive (max 32gig)

Communication protocols

OPC UA Connection/ Modbus Connection/ Put-Get connection (Siemens protocol)
