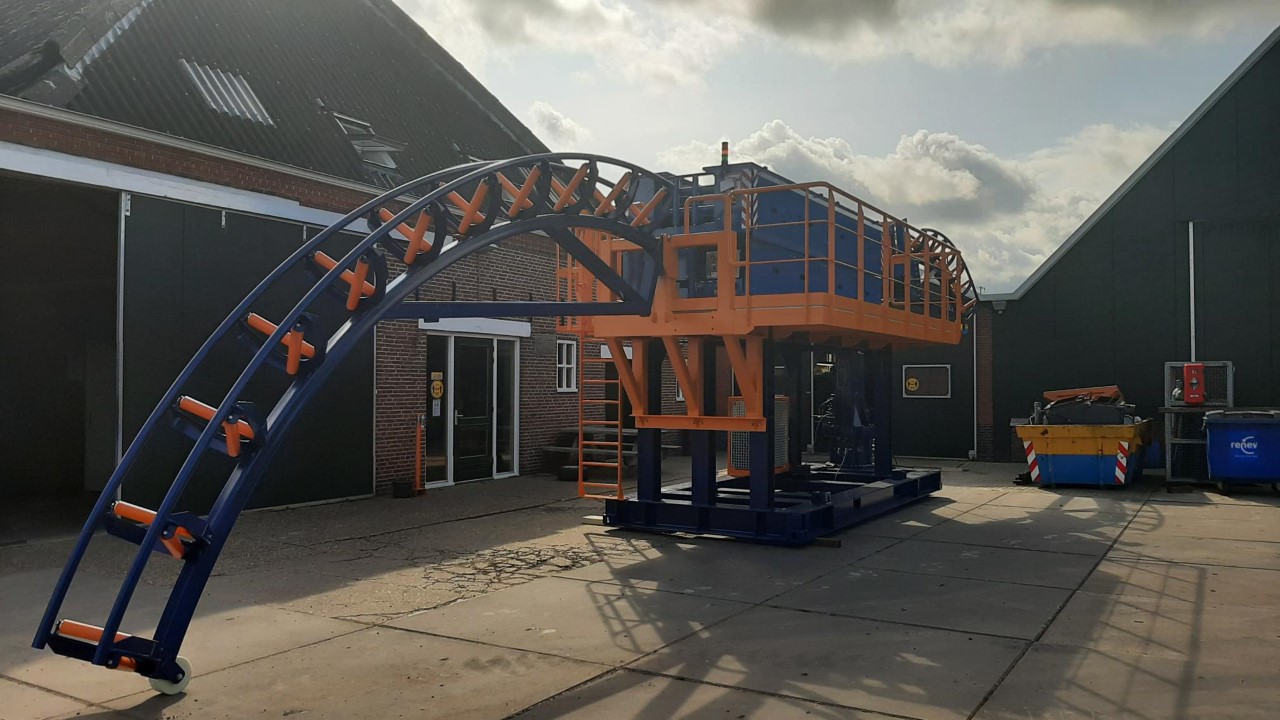

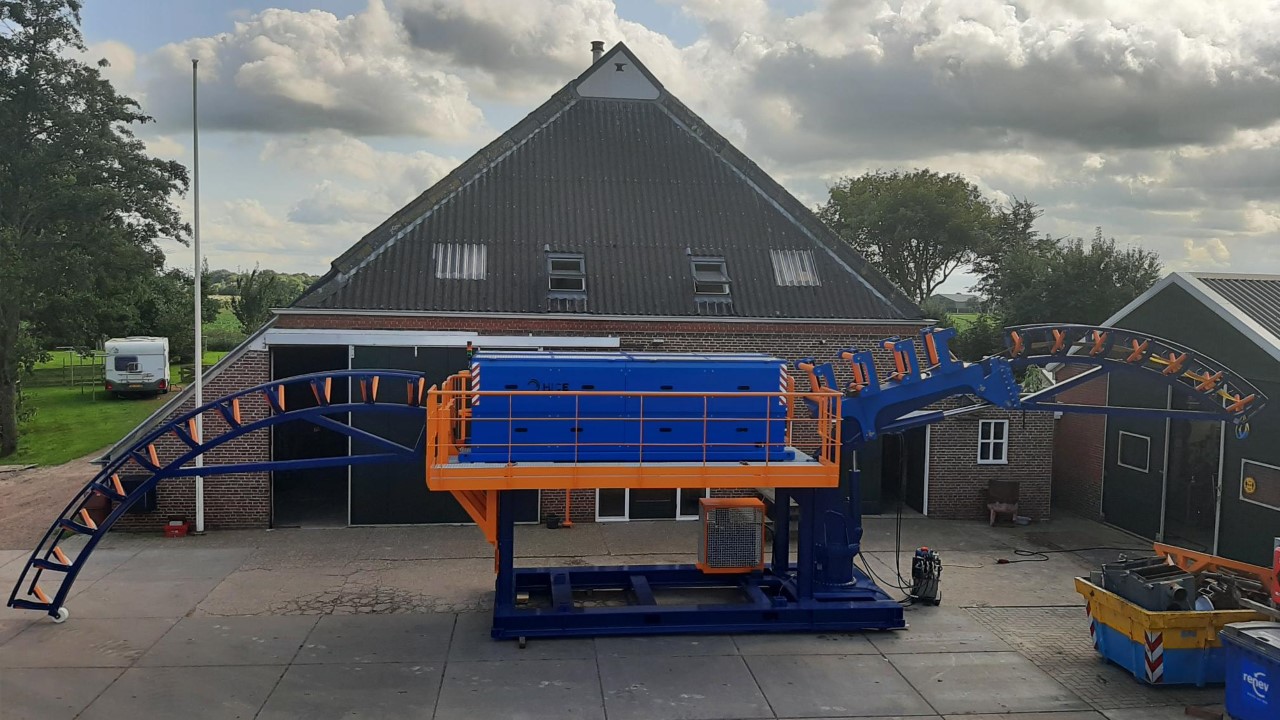

Mobile Cable Pick Up Crane

Mobile Cable Pick Up Crane 1
Mobile Cable Pick Up Crane 2
Mobile Cable Pick Up Crane 3
Mobile Cable Pick Up Crane 4
← Back

Technical Specification Mobile Cable Pick Up Crane

  • Easily controlled from OD-ID vice versa by remote controlled crane quadrant
  • Easily adjustable height by standard classified 20” containers
  • Base frame with container locks, easily transportable by truck
  • Easily mobilisation
  • Build in HPU
  • Can be equipped with 3T LCE
  • Max cable opening 350mm
  • Max. load 3T ( approx. 20mtr. x 150kg)
  • Standard quadrants with MBR 5mtr, other dimensions upon request
  • Excluded containers to extend the height
